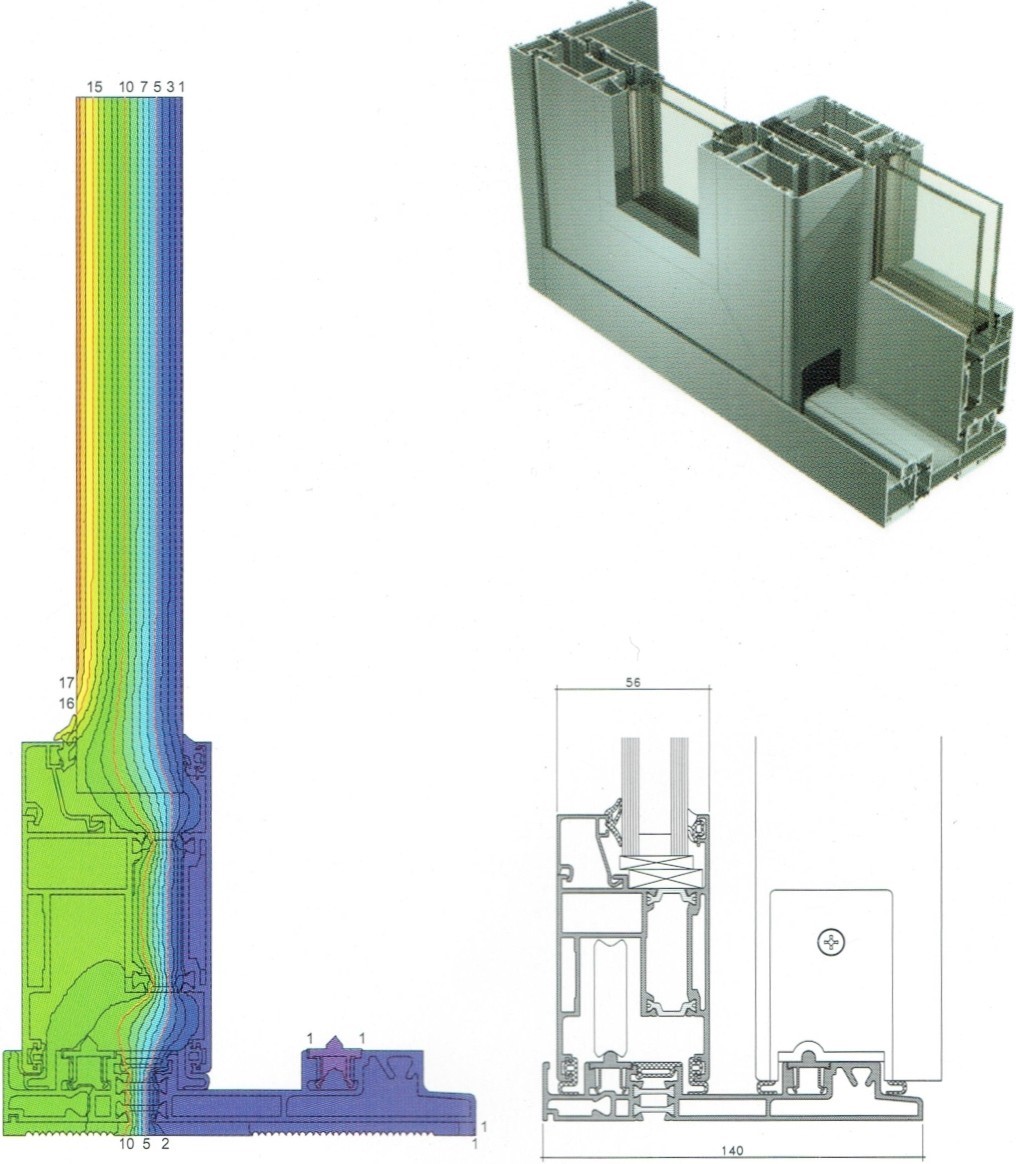

PROFILES
- depth of outer frames: 140 mm (213 mm 3-way version)
- depth of sash: 56 mm
APPLICATION
Windows, balcony-doors. With mechanical retention. Motorized, sliding 2 doors, sliding 3 doors, sliding 4 doors, sliding 6 doors, sliding 3-way, sliding, lift & slide.
PANES
- minimum depth: l0 mm
- maximum depth: 40 mm
- panel, double glass, triple glass
ROLLERS
300 (400) Kg
PERFORMANCE
THERMAL TRANSMITTANCE
Uw = 1,4 W/m2 K
ACOUSTIC PERFORMANCE
Rw (Ct; Ctr) = 38 (-1; -3) dB
